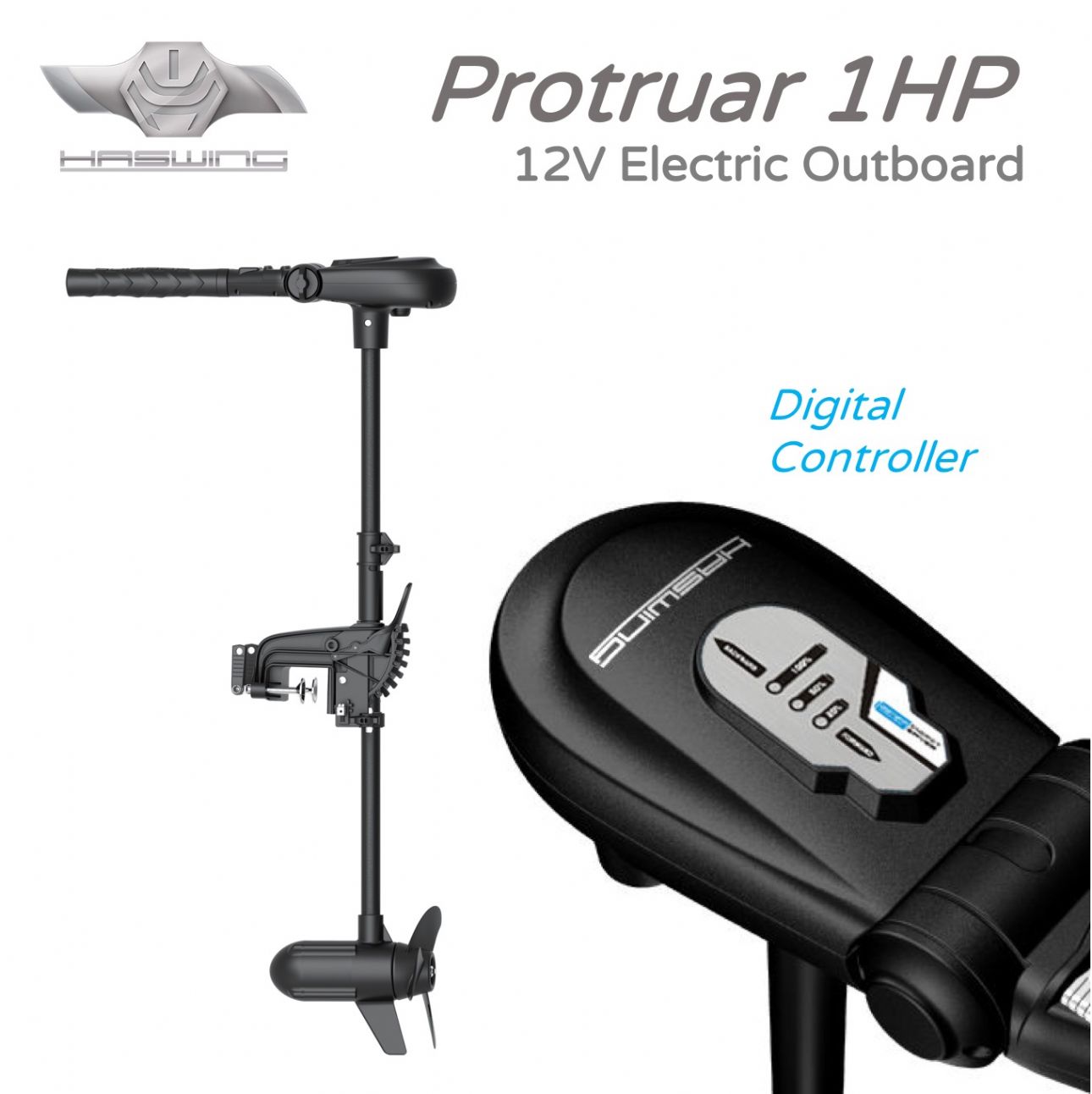

HASWING Protruar 1HP Electric Outboard 12V
Haswing Protruar 1HP Electric Outboard 12V with Digimax Controller has a thrust equivalent to 2HP petrol outboards, suitable for freshwater and saltwater use on boats up to 6m.
Requires 12V battery.
Includes warranty and UK after-sales service support.
Key Features
- Producing equivalent thrust to a 2HP petrol engine without the pollution, noise and regular service needs.
- Built in heavy duty brushless motor ensures efficient power conversion and zero maintenance.
- Digimax digital controller maximises runtime in water and conserves battery use at any power setting.
- Enables higher power conversion efficiency than trolling motors.

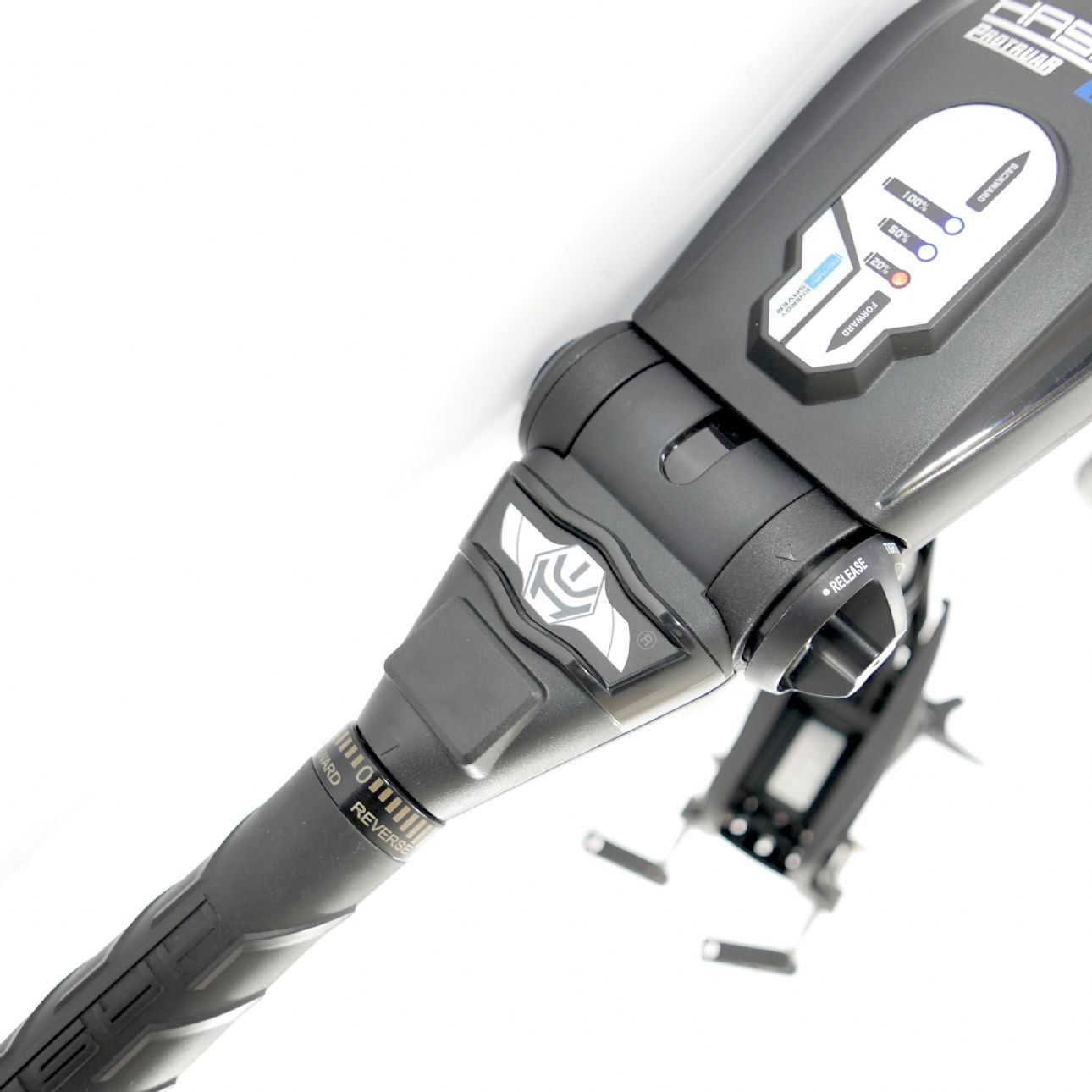

- Digital controller provides smooth stepless forward and reverse speeds, and as a safety feature prevents false starts when initially connected to battery.
- Durable contoured rubber handle provides a comfortable grip.

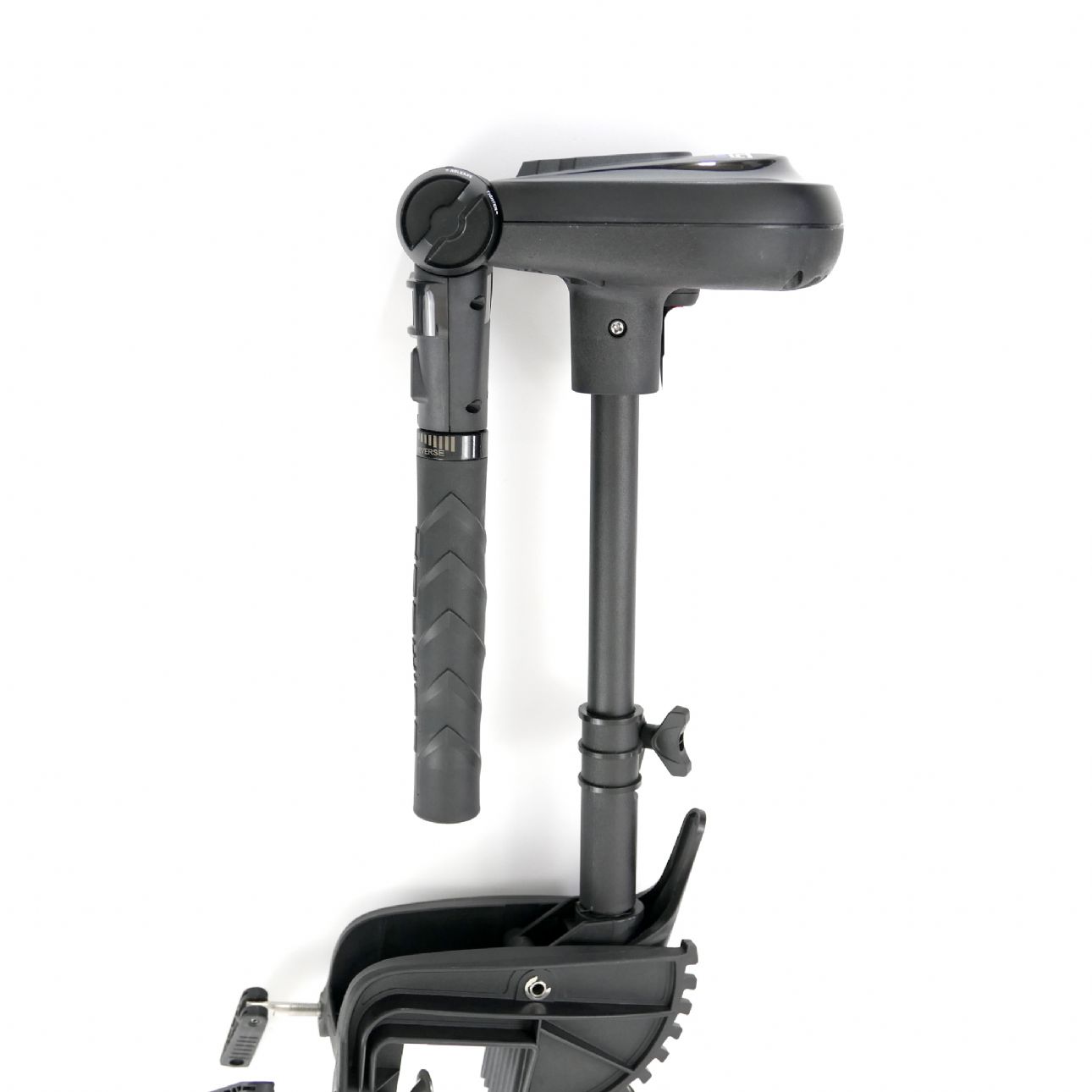

- Telescopic handle extends for comfortable reach up to 400mm.
- Handle swivels vertically through 180 degrees.
- Durable cast aluminium shaft, 35″ length, and weighs only 6.3kg.
- Secure the outboard with locking padlocks to clamp screws while fitted to transom.
- Supplied with sacrificial anodes (and spares) suitable for both salt and fresh water use.
- An electronic 3 level LED battery indicator to monitor reserve power.
- Integral motor fin prevents prop and motor from underwater impact.
- Waterproof rating to IP67
- 1 year limited warranty
- CE Certification.
Operation
- Twist the handle to achieve smooth stepless forward and reverse speeds.
- Immersion height adjusted with depth collar, enabling use in variable water depths.
- Battery level monitored by 3 level LED indicators.
- Steering lock prevents free wheeling. When lock is released can steer through 360°.
- Tilt bracket allows the motor to tilt through 10 levels.
- User manual and propeller fixing kit included.
Specification
- Shaft Power: 1HP
- Comparable petrol outboard: 2HP
- Max Battery Voltage: 12V
- Rated Amp: 50A (Max)
- Waterproof to IP67
- Shaft : Cast Aluminium
- Shaft Length: 35inch / 900mm

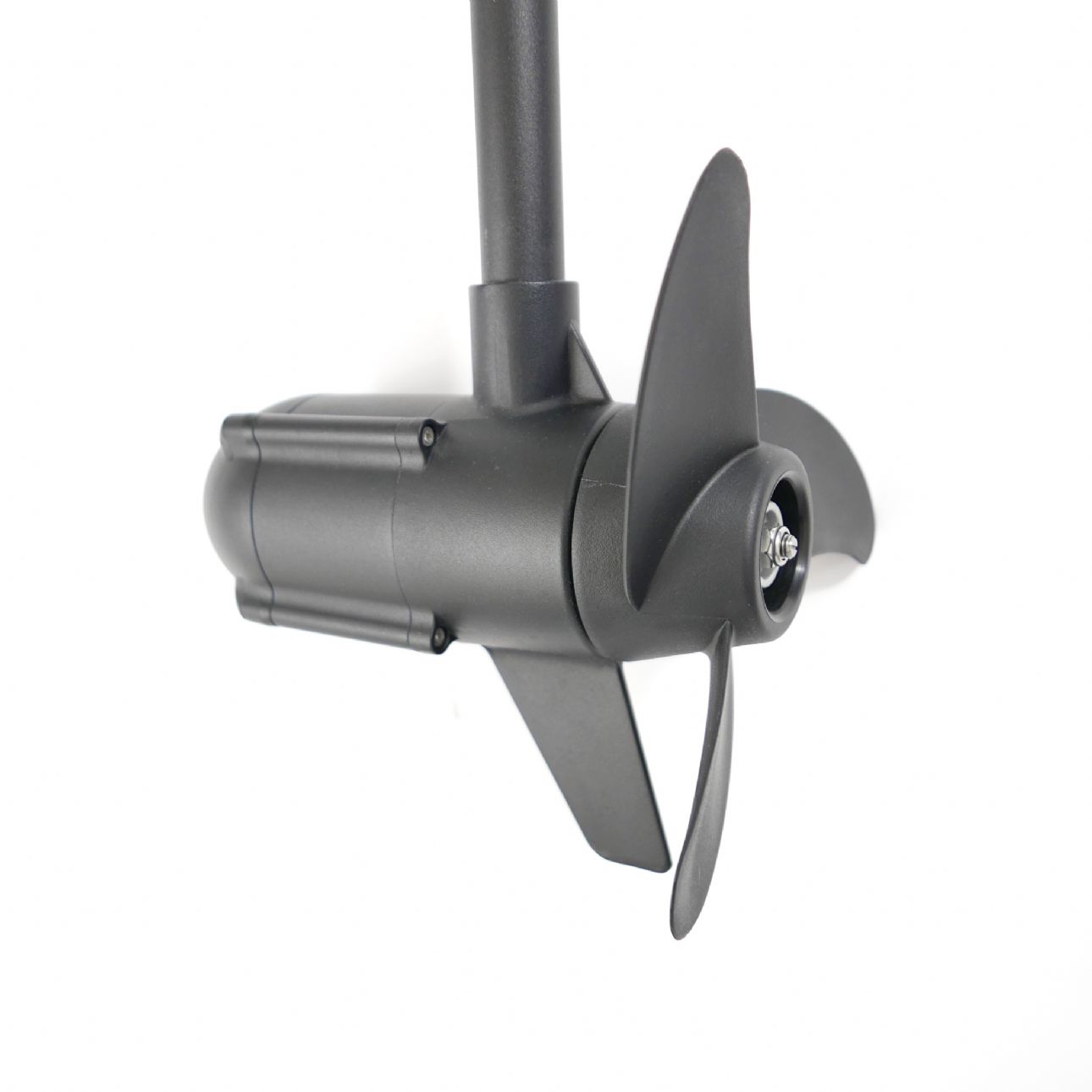

- Propeller: 3 blade, 9.3 inch (Diameter)
- Prop Speed Underwater: 1250 RPM at full power.
- Sound Level: < 50db
- Weight: 6.3 kg
- Dimensions: Height 119cm
- Propellor/Motor: 25cm x 21cm
- Mounting Bracket : 21cm x 22cm
- Motor Head: 24cm x 13cm
Recommendation
- 12V, 105AH Deep Cycle (Leisure) Battery or higher. Battery not included.
- Up to 6m boat length.
