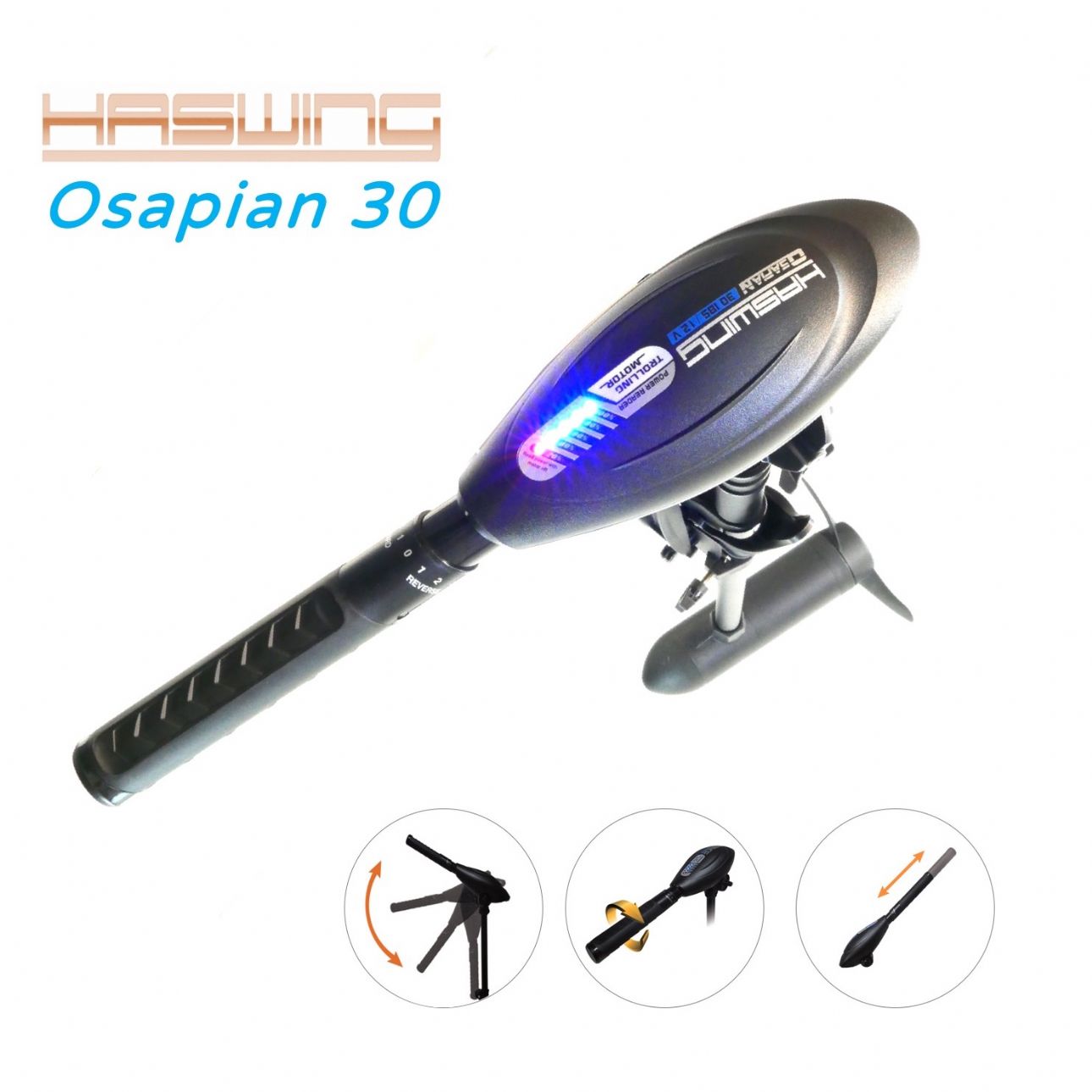

HASWING OSAPIAN ELECTRIC OUTBOARD TROLLING MOTOR.jpg
HASWING Osapian Electric Outboard Range - HASWING Osapian Electric Outboard Range - HASWING Osapian Electric Outboard Range - HASWING Osapian Electric Outboard Range -

HASWING Osapian Electric Outboard Range



Qty Description Price
HASWING Osapian Electric Outboard Range - Osapian 30
£185.00
HASWING Osapian Electric Outboard Range - Osapian 40
£199.99
HASWING Osapian Electric Outboard Range - Osapian 55
£214.99

Haswing Osapian Electric Outboard Range is designed to be more than a basic trolling motor, with premium Features and Build Quality. The Osapian range sets itself apart from the competition by its features and build quality.

 Multi-Function Handle, Compact and Portable

  • Durable contoured rubber handle provides a comfortable grip.
  • Twisting the steering handle controls the power output with 5 forward speed and 3 reverse speeds.
  • Telescopic handle extends for comfortable reach up to 350mm.
  • Collapsible folding upper body and handle saves space on-board and for storage or transport in a car boot.

Other Features

  • Powered by a 12 volt motor durable heavy duty motor.
  • 5 forward and 3 reverse speeds

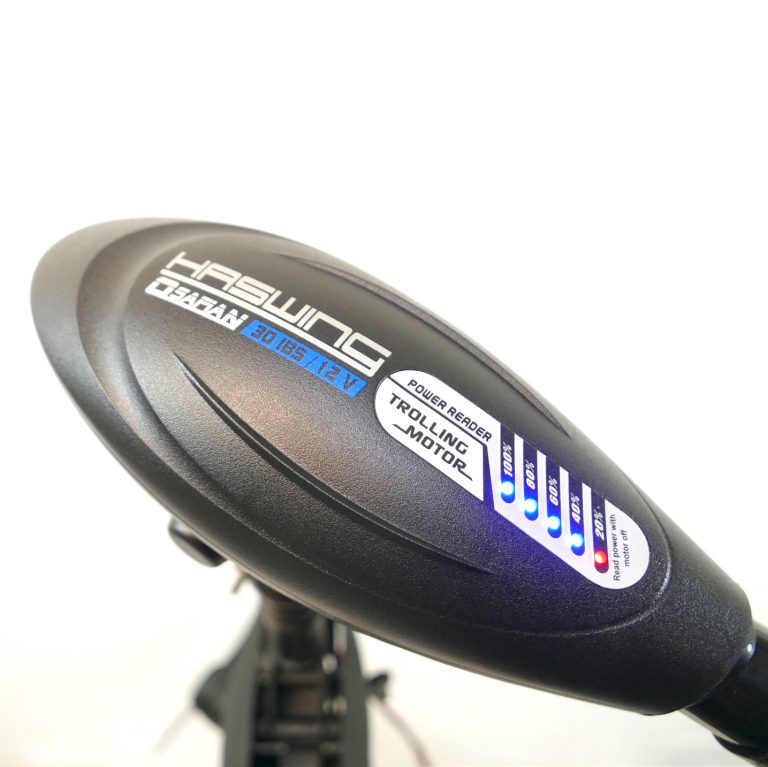

  • 5 level Battery LED indicator
  • Sound Level < 50db
  • Steering lock prevents free wheeling. When lock is released can steer through 360°.
  • Tilt bracket allows the motor to tilt through 10 levels.
  • Immersion height adjusted with depth collar
  • Integral motor fin prevents prop and motor from underwater impact.
  • Supplied with a sacrificial anode and suitable for both salt and fresh water use.
  • Holes on clamp screw accepts a padlock to secure the trolling motor while fixed to transom.

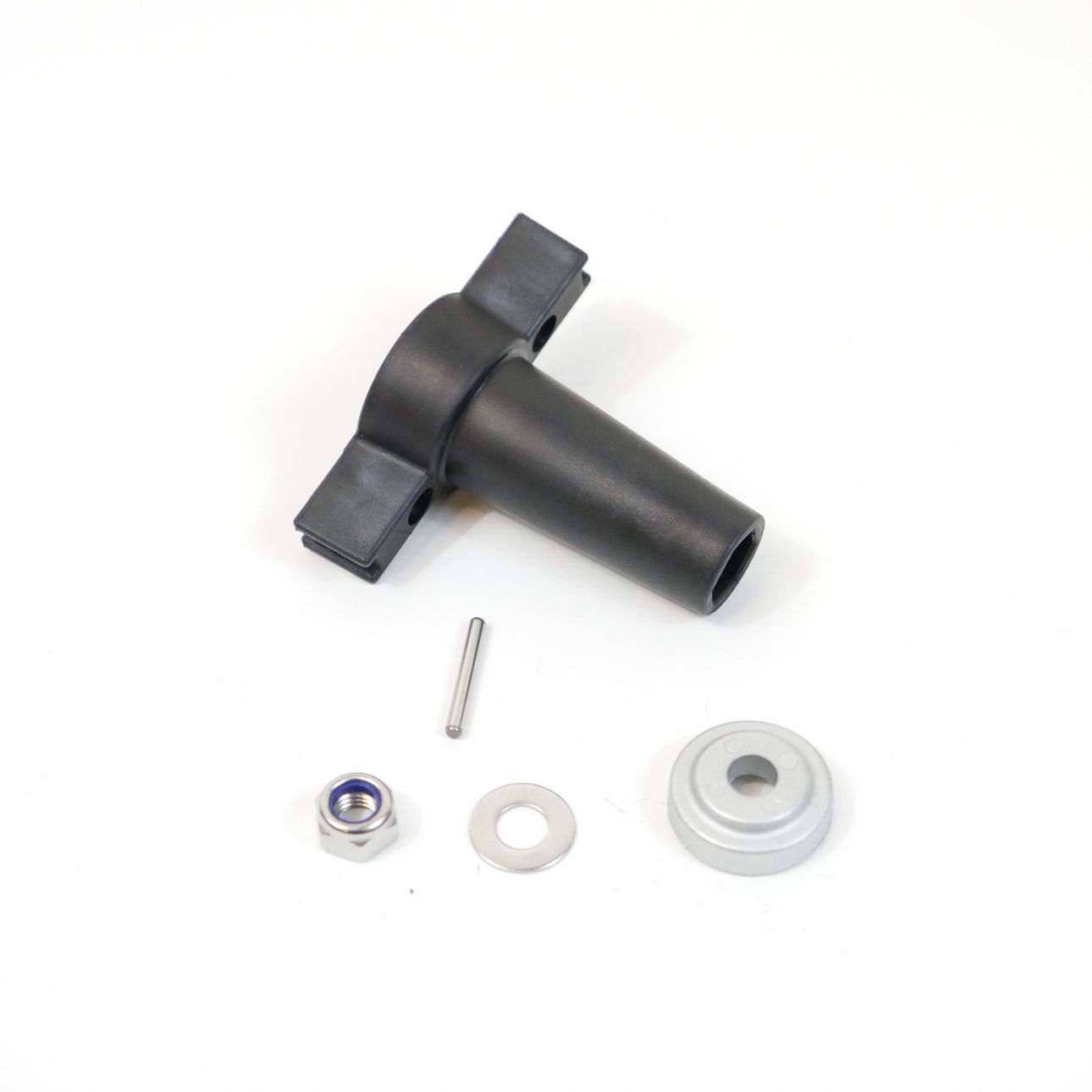

  • User manual and propeller fixing kit included.

 Recommended Battery

  • 12V, 105AH Deep Cycle (Leisure) Battery



Models available in 30 and 55 Lbs thrust output.



Model

Max Thrust (Lbs)

Max Battery Voltage ** (V)

Rated Amp (Max)

Shaft Length

Propeller

Prop Speed (Max RPM)

Weight (kg)

Dimensions (mm)

Recommended Boat Size

Osapian 30

30

12

26A – 30A

30inch / 760mm

2 blade, 9 inch (Dia.)

1200

6.6

Length 560, Height 1120, Width 150

Up to 4m boat length, max load 250kg

Osapian 40

40  12  36A – 40A   36inch / 914mm  2 blade, 9 inch (Dia)  1400

Length 600, Height 1120, Width 150

4.7m boat length, max load 320kg.

Osapian 55

55

12

45A – 55A

36inch / 914mm

3 blade, 9.3 inch (Dia.)

1400

8.2

Length 560, Height 1230, Width 150

Up to 5.5m boat length, max load 400kg
